Why This Matters Now

A development team working on a topical corticosteroid cream receives pressure to reformulate. The product has been on market for over a decade, but growing regulatory and sustainability scrutiny on petroleum-derived excipients, combined with a brand strategy that positions the product line toward cleaner ingredient profiles, creates the impetus to act. A biobased emollient is identified as a candidate. Sensory panelists rate the two formulations as comparable. Viscosity measurements fall within the acceptable range. The physical appearance of the product is unchanged.

Eight months into stability testing, the reformulated product fails in vitro drug release testing against the reference standard. The measured drug flux through a synthetic membrane is substantially lower than what the original formulation delivers. Investigation into the root cause identifies no issue with the active pharmaceutical ingredient: the concentration is correct, the chemical stability is maintained, and the pH is unchanged. The issue is with the vehicle. The new emollient altered the microstructural organization of the emulsion in ways that changed how the formulation flows during application, how much surface area it covers when spread across the skin, and how it maintains contact with the skin surface as a drug reservoir during the post-application period. A formulation that appeared equivalent on standard quality checks is delivering a meaningfully different dose to the target tissue.

This scenario is not unusual in topical pharmaceutical development. The rheological properties of a topical drug product, which govern how it flows, spreads, and interacts with the skin surface, are not primarily sensory parameters. They are performance parameters. A topical product that does not spread correctly, that does not maintain appropriate contact with the target site, or that releases its active ingredient at the wrong rate because of the rheological characteristics of the vehicle is not therapeutically equivalent, even if its physical properties fall within the ranges established during initial specification. Understanding why rheology sits at the center of topical drug delivery requires examining what happens between when a formulation leaves the container and when the active ingredient reaches the tissue it is intended to affect.

The Pressures Reshaping Topical Pharmaceutical Formulation

Several forces are restructuring the development environment for topical drug products simultaneously, and they do not operate independently of each other.

The most immediate is the evolution of the regulatory framework for demonstrating bioequivalence in semisolid dosage forms. For decades, establishing that a generic topical product was bioequivalent to its reference standard required clinical endpoint studies, which are expensive, slow, and statistically demanding. The FDA’s expanded acceptance of in vitro release testing and in vitro permeation testing as approaches for certain semisolid formulations has changed the development calculus significantly. These methods make drug release and permeation behavior visible and quantifiable in ways that accelerate development timelines, but they also make rheological mismatches between a candidate formulation and its reference impossible to conceal. A formulation that passes visual and basic physical property assessments but performs differently on drug release testing will fail these studies, and the rheological properties of the vehicle are often where the investigation begins.

Ingredient sustainability and clean formulation trends are reaching prescription and over-the-counter topical products with increasing force. White petrolatum and mineral oil have been workhorses of topical pharmaceutical vehicles for generations, valued for their chemical inertness, physical consistency, and occlusive properties. Both face a changing regulatory and commercial environment in several major markets, and biobased emollients and synthetic esters are increasingly being evaluated as alternatives. These alternatives interact with emulsifiers, thickeners, and active ingredients in ways that are not predictable from sensory comparison or standard physical property measurement alone. The substitution of one vehicle component propagates through the rheological behavior of the entire system in ways that take months of stability and performance testing to fully characterize.

The growth of topical and transdermal delivery as a therapeutic route has placed greater emphasis on the relationship between formulation properties and drug permeation. Transdermal patches control drug delivery primarily through patch design rather than patient application behavior, but topical solutions, gels, and creams intended for both local and systemic effect must function across the range of application behaviors that real patients exhibit. These variables are not uniform, and designing a formulation that delivers a consistent therapeutic dose across this variation is a more demanding problem than it appears from outside the development process.

Patient adherence to topical therapy is meaningfully affected by how a product feels during and after application. A formulation that leaves a greasy residue, that resists spreading and requires uncomfortable rubbing to cover the treatment area, or that absorbs unpredictably is one that patients use inconsistently. The relationship between rheology and patient experience is therefore also a relationship between rheology and clinical outcomes. A product that works only when applied correctly must be designed to make correct application as easy and consistent as possible.

The Physics of Topical Formulation Performance

The properties that determine how a topical drug product behaves from application through delivery are interconnected through the physics of semisolid systems and the biology of skin. Understanding each property individually is the starting point for understanding why they are so difficult to optimize simultaneously.

Rheology: How a Semisolid Must Flow

Topical drug products must satisfy two rheological requirements that are, in some respects, opposed to each other. During application, the product must flow freely enough that a patient can spread it across the treatment area with reasonable effort. After application, it must resist flow well enough to stay where it has been placed rather than running off the skin surface, spreading beyond the treatment area, or transferring to clothing or other surfaces before the active ingredient has had sufficient contact time.

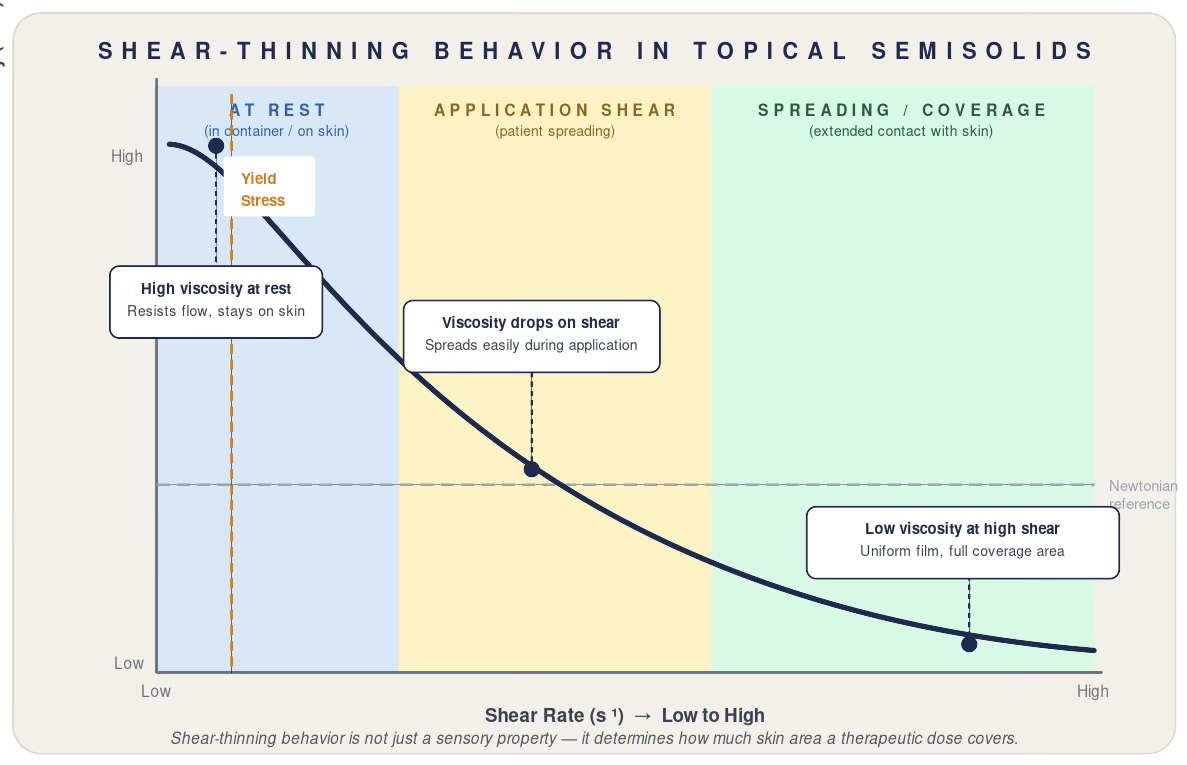

Managing these two requirements simultaneously requires a formulation that is shear-thinning: viscous under low shear, but flowing more freely under the higher shear applied during spreading. Yield stress is the parameter that governs at-rest behavior. A topical formulation with a well-defined yield stress maintains its structure until a threshold shear stress is applied, at which point it flows.

This gives the product stability in the container and the tendency to remain on skin rather than migrating after application. The appropriate yield stress depends on the application site, the intended duration of contact, and whether the patient is likely to apply the product to a vertical or sloped surface; a wound gel applied to a surgical site has different requirements than a scalp treatment or a facial cream, even if their viscosities at application shear rates appear similar.

The viscoelastic character of a semisolid vehicle also determines how the product transitions from the spreading phase to the reservoir phase on skin. A viscoelastic material stores some of the energy applied during spreading and recovers structure after shear stress is removed, which is what allows a topical formulation to form a coherent film on the skin surface rather than simply flowing to an equilibrium thickness determined by gravity. Thixotropy, the time-dependent recovery of viscosity after shear, affects how quickly a formulation re-establishes its structure after the spreading phase ends. A formulation that recovers slowly may remain fluid for an extended period after application, affecting the uniformity of the drug reservoir. One that recovers too quickly may resist spreading beyond the initial point of contact.

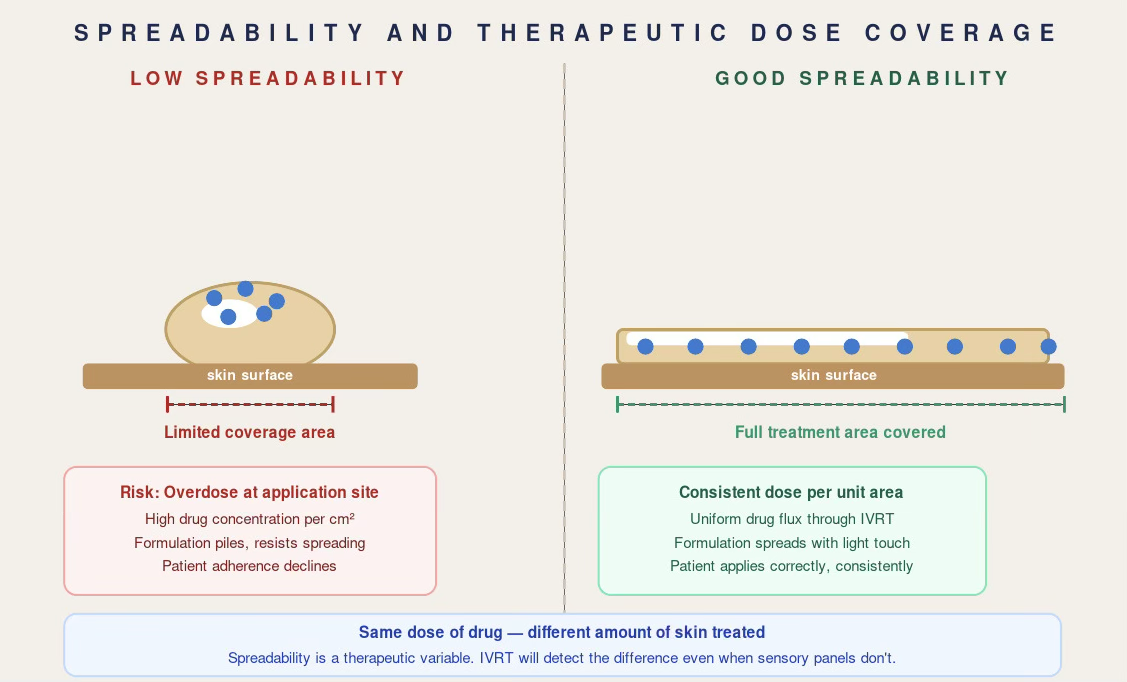

Spreadability and Drug Coverage

The area over which a topical formulation spreads during application directly determines the concentration of active ingredient delivered per unit of skin surface area, assuming uniform drug distribution within the vehicle. A product with lower spreadability deposits more formulation mass per unit area, which may increase local drug concentration but reduces the coverage achievable with a given dose. A product that spreads too readily may deliver too low a drug concentration per unit area to achieve the desired therapeutic effect, or may spread beyond the intended treatment zone.

The relationship between spreadability and clinical outcomes is most apparent in the context of in vitro release testing, where drug flux is measured per unit of membrane area under standardized application conditions. If the standardized test assumes a uniform film at a specified mass per area, but real-world patient application produces considerably different film thicknesses depending on the formulation’s spreadability and the patient’s application technique, the in vitro measurement may not reflect clinical performance. Designing formulations with spreadability that is both therapeutically appropriate and consistent across the realistic range of patient application behaviors requires deliberate rheological control throughout the development process.

Skin surface topography adds further complexity. Skin is not a flat surface; it has furrows, follicular openings, and regional variation in texture that affects how a semisolid formulation distributes at the microscale. Formulations with higher spreadability tend to flow into surface features more readily, which influences drug deposition along the follicular pathway, a route of absorption that is quantitatively important for certain actives and dermatological conditions.

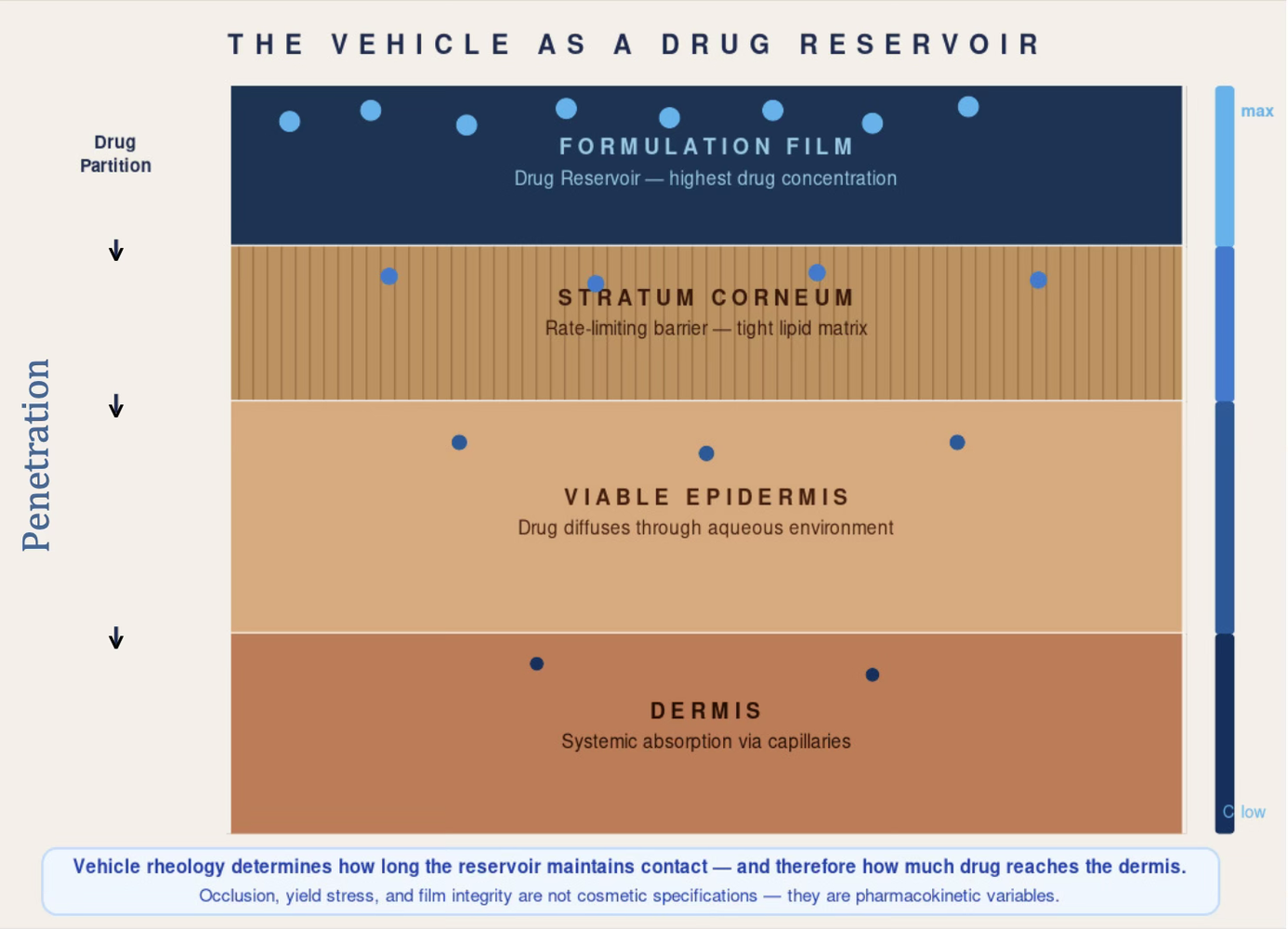

The Vehicle as Reservoir and Penetration Modifier

The rheological properties of a topical vehicle affect drug delivery not only during the application phase but throughout the time the formulation maintains contact with skin. After spreading, the vehicle forms a film that acts as an external reservoir for the active ingredient. The rate at which drug partitions from this reservoir into the stratum corneum depends on the thermodynamic activity of the drug in the vehicle, the diffusion coefficient of the drug through the vehicle matrix, and the relative affinity of the drug for the stratum corneum versus the vehicle.

Occlusion is a mechanism by which the vehicle film influences drug penetration. A vehicle that forms a continuous, low-permeability film over the skin surface slows the evaporation of transepidermal water, increasing the hydration state of the stratum corneum and improving its permeability to certain actives. Petrolatum is highly occlusive for this reason. Biobased emollient alternatives vary widely in their occlusive properties, and replacing a highly occlusive vehicle component with a less occlusive one may reduce drug flux into the tissue even when the formulation’s bulk rheological properties appear similar to the original.

Chemical penetration enhancers complicate the picture further. Compounds such as certain fatty acids, terpenes, and short-chain alcohols improve drug flux by disrupting the lipid organization of the stratum corneum or by improving the thermodynamic activity of the drug within the vehicle. Incorporating these compounds into a semisolid formulation changes the polarity of the continuous phase, which alters the hydrophilic-lipophilic balance requirements of the emulsifier system and propagates through the emulsion microstructure. A penetration enhancer that improves drug flux at the skin interface may simultaneously alter the formulation’s rheological behavior in ways that affect spreadability, coverage, and the integrity of the drug reservoir.

Physical Stability of Semisolid Dosage Forms

Topical pharmaceutical products must maintain their physical properties across a shelf life that typically extends to two years under labeled storage conditions. Physical instability in a semisolid manifests as syneresis, in which liquid separates from the gel or cream matrix; phase inversion; particle aggregation if the product contains suspended materials; or gradual changes in viscosity and yield stress that alter performance on skin.

The mechanisms driving physical instability in semisolids are closely related to the microstructural organization of the formulation. An emulsion-based cream depends on the integrity of the interfacial film around each dispersed droplet, the balance of electrostatic and steric repulsion between droplets, and the rheological properties of the continuous phase to prevent coalescence and maintain the physical structure of the product over time. Temperature cycling that moves the formulation through its melting or crystallization transitions can disrupt this organization irreversibly, which is why freeze-thaw studies are part of the standard accelerated stability protocol for semisolid pharmaceutical products.

Preservative efficacy adds another dimension. Antimicrobial compounds that partition preferentially into the oil phase of an emulsion may be present at insufficient concentration in the aqueous phase to prevent microbial growth. Getting preservative distribution right requires understanding partition behavior within the formulation microstructure, not simply the total concentration in the finished product.

Why These Properties Cannot Be Optimized Independently

The coupling between rheological behavior, spreadability, vehicle reservoir function, and physical stability makes topical pharmaceutical development resistant to sequential, one-variable-at-a-time approaches.

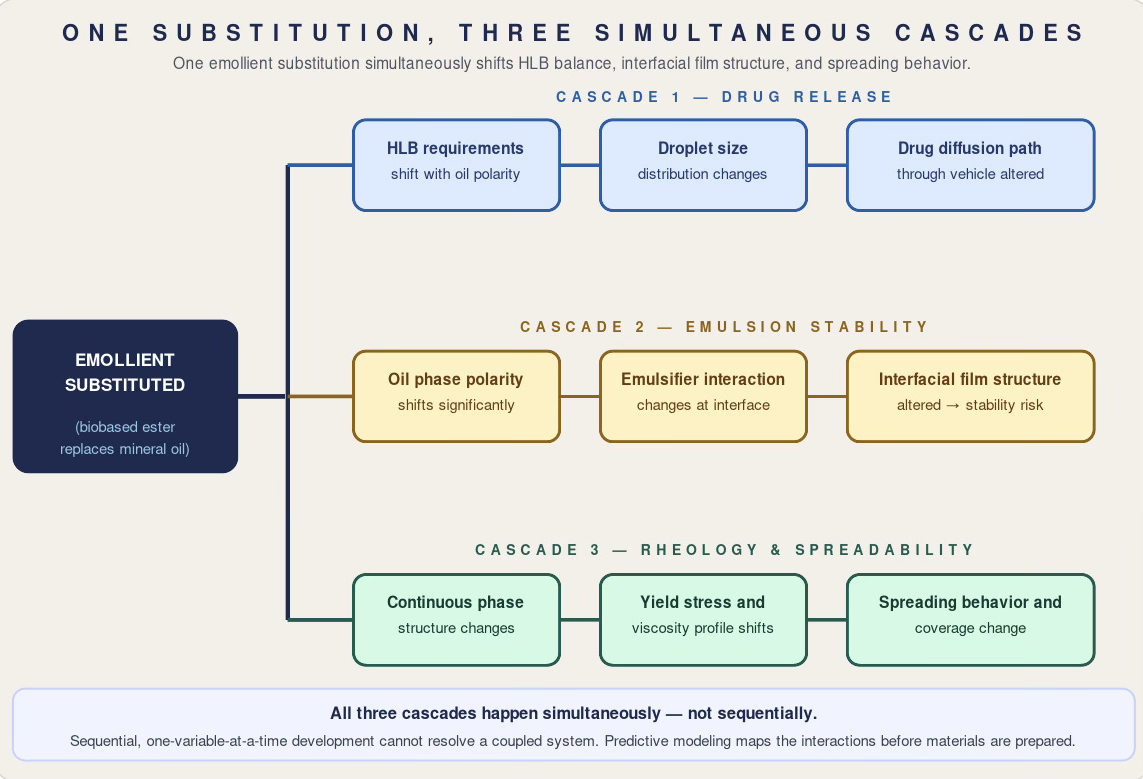

Consider the constraint set facing a formulator tasked with replacing mineral oil in an established topical anti-inflammatory product. A biobased ester is selected that matches the original on viscosity and sensory evaluation. When incorporated into the formulation, it alters the polarity of the oil phase, changing the hydrophilic-lipophilic balance requirements of the emulsifier system. The existing emulsifier, optimized for the original oil phase, now produces a different droplet size distribution. The change in droplet size affects both the texture of the finished product and the rate at which the active ingredient diffuses through the continuous phase to reach the skin surface. If the emulsifier concentration is adjusted to restore droplet size, the modified interfacial film may exhibit different long-term stability characteristics. Adding a thickener to restore the original viscosity profile changes the yield stress and alters spreading behavior. If a penetration enhancer is incorporated to recover drug flux affected by these changes, the polarity shift creates new interactions with the emulsifier system, requiring the droplet size and interfacial stability to be reconsidered.

None of these effects is surprising in isolation. Each is a predictable consequence of known physicochemical interactions. The challenge is that they interact simultaneously in a design space where optimizing one property moves others out of specification. Sequential development, in which one variable is adjusted at a time and the product is fully characterized before the next change is made, addresses this design space slowly and often fails to reach a satisfactory formulation within the available development timeline.

Where Predictive Tools Change the Approach

Traditional semisolid pharmaceutical development follows a cycle of formulate, characterize, and test. A candidate formulation is prepared, its rheological properties and physical stability are assessed, and drug release testing is performed. If a failure occurs, the formulator adjusts the composition and the cycle repeats. For reformulations where the design space is narrow and the component interactions are well-characterized, this approach works. For reformulations where multiple interdependent variables must be brought into specification simultaneously, and where each stability study takes weeks to months to complete, it becomes expensive and slow in proportion to the complexity of the problem.

Chemistry-aware predictive models offer a different point of entry into this process. Rather than discovering how a formulation behaves by making and testing it, these models provide estimates of key properties from the formulation composition before any material is prepared. This does not replace physical testing; regulatory requirements for topical pharmaceutical products mandate experimental characterization of the finished product, and the complexity of real formulation systems means that predictions must be confirmed. What predictive tools change is the experiment selection process. Development teams can use predictive screening to identify which regions of the formulation design space are most likely to satisfy simultaneous constraints on rheology, drug release behavior, and physical stability, and concentrate their experimental resources on those candidates rather than distributing them across the full design space.

FastFormulator’s Virtual Viscometer uses chemistry-aware models trained on real formulation data to predict how the viscosity and rheological profile of a semisolid will respond to compositional changes before a preparation and characterization cycle begins. For topical pharmaceutical applications, where the relationship between the rheological profile of the vehicle and the drug release performance of the finished product is both measurable and direct, predicting rheological behavior at the formulation design stage reduces the number of experimental iterations required and lowers the risk of discovering a fundamental design problem late in the development timeline. The Virtual Stability Chamber extends this capability to physical stability, providing early estimates of how compositional changes will affect long-term consistency and helping development teams identify stability risks before committing to extended storage studies.

Takeaways

The rheological properties of a topical drug product are not specifications to be confirmed at the end of development. They are primary determinants of whether the product delivers its active ingredient to the target tissue at the intended concentration across the range of application conditions and storage histories that real products encounter. Spreadability governs how much skin surface area a given dose covers. Yield stress determines whether the formulation stays where it is applied. The viscoelastic character of the vehicle determines how the formulation forms and maintains a drug reservoir during the post-application period. Failures in any of these properties translate not into cosmetic shortcomings but into therapeutic failures: insufficient drug flux, inconsistent dosing across patients, or in vitro bioequivalence failure at the regulatory submission stage.

The difficulty in optimizing these properties is not in understanding any of them individually. It is in the tight coupling between rheological behavior, emulsion microstructure, drug release kinetics, and physical stability that characterizes effective semisolid formulations and makes them resistant to sequential single-variable adjustment. A change to the emollient alters the hydrophilic-lipophilic balance requirements of the emulsifier, the droplet size of the emulsion, the diffusion pathway of the active, and the long-term stability of the microstructure. A change to the thickener alters the yield stress, the spreading behavior, and the interaction with any penetration enhancer present. Addressing the bioequivalence standard for a topical pharmaceutical while simultaneously satisfying patient usability, shelf-life stability, and evolving sustainability requirements demands that the formulator manage this coupled design space as a whole.

Predictive tools built on physicochemical modeling can change the economics of this process by providing early insight into how compositional choices will affect rheological behavior and physical stability before experimental resources are committed. By identifying the regions of the formulation design space most likely to satisfy simultaneous constraints, these tools allow development teams to focus their stability studies and drug release testing on the candidates with the highest probability of success. The result is a more direct path from formulation concept to a topical drug product that performs consistently across the full range of conditions it will encounter from development through patient use.

References

• Barry, B.W. (1983). Dermatological Formulations: Percutaneous Absorption. Marcel Dekker, New York.
• Aulton, M.E. and Taylor, K.M.G. (Eds.) (2013). Aulton’s Pharmaceutics: The Design and Manufacture of Medicines, 4th Edition. Elsevier Churchill Livingstone, Edinburgh.
• Rowe, R.C., Sheskey, P.J. and Quinn, M.E. (Eds.) (2009). Handbook of Pharmaceutical Excipients, 6th Edition. Pharmaceutical Press, London.
• Hadgraft, J. and Lane, M.E. (2005). Skin permeation: the years of enlightenment. International Journal of Pharmaceutics, 305(1-2), 2–12.
• Williams, A.C. and Barry, B.W. (2004). Penetration enhancers. Advanced Drug Delivery Reviews, 56(5), 603–618.
• U.S. Food and Drug Administration (1997). Guidance for Industry: Nonsterile Semisolid Dosage Forms — SUPAC-SS: Scale-Up and Postapproval Changes. FDA, Rockville, MD.
• Pellett, M.A., Roberts, M.S. and Hadgraft, J. (1997). Supersaturated systems in topical drug delivery. International Journal of Pharmaceutics, 151(1), 91–102.
• Sinko, P.J. (Ed.) (2011). Martin’s Physical Pharmacy and Pharmaceutical Sciences, 6th Edition. Lippincott Williams & Wilkins, Baltimore, MD.
• Tadros, T.F. (2009). Emulsion Science and Technology. Wiley-VCH, Weinheim.
• Bronaugh, R.L. and Maibach, H.I. (Eds.) (2005). Percutaneous Absorption: Drugs, Cosmetics, Mechanisms, Methodology, 4th Edition. Taylor & Francis, Boca Raton, FL.
